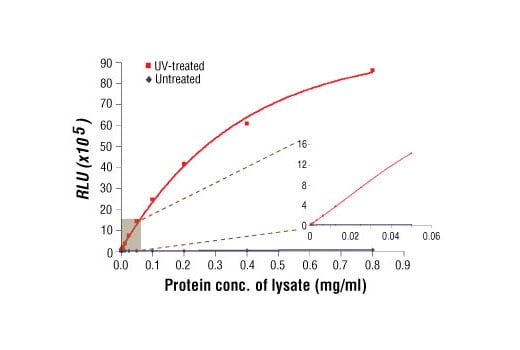

Relationship between protein concentration of lysates from untreated and UV-treated 293 cells and immediate light generation with chemiluminescent substrate is shown. Cells (70-90% confluence) were treated with or without UV and lysed after incubation at 37ºC for 30 minutes. The graph inset corresponding to the shaded area shows high sensitivity and a linear response at the low protein concentration range.Learn more about how we get our images
|Product Includes||Volume||Solution Color|
|P-SAPK/JNK (Thr183/Tyr185) Rabbit mAb Coated Microwells||96 tests|
|SAPK/JNK Mouse Detection mAb||1 ea||Green (Lyophilized)|
|Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)||1 ea||Red (Lyophilized)|
|Detection Antibody Diluent||5.5 ml||Green|
|HRP Diluent||5.5 ml||Red|
|Luminol/Enhancer Solution||3 ml|
|Stable Peroxide Buffer||3 ml|
|Sealing Tape||2 ea|
|ELISA Wash Buffer (20X)||25 ml|
|ELISA Sample Diluent||25 ml||Blue|
|Cell Lysis Buffer (10X) 9803||15 ml|
NOTE: Refer to product-specific datasheets for assay incubation temperature. This chemiluminescent ELISA is offered in low volume microplates. Only 50 µl of samples or reagents are required in each microwell.
NOTE: Prepare solutions with purified water.
*NOTE: Some PathScan® ELISA Kits may include HRP-Linked Streptavidin in place of HRP-Linked Antibody.
posted November 2013
The PathScan® Phospho-SAPK/JNK (Thr183/Tyr185) Chemiluminescent Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of phospho-SAPK/JNK (Thr183/Tyr185) protein with a chemiluminescent readout. Chemiluminescent ELISAs often have a wider dynamic range and higher sensitivity than conventional chromogenic detection. This chemiluminescent ELISA, which is offered in low volume microplates, shows increased signal and sensitivity while using a smaller sample size. A SAPK/JNK mouse mAb has been coated on the microwells. After incubation with cell lysates, total SAPK/JNK protein (non-phosphorylated and phosphorylated) is captured by the coated antibody. Following extensive washing, phospho-SAPK/JNK (Thr183/Tyr185) antibody is added to detect the captured phospho-SAPK/JNK (Thr183/Tyr185) protein. Anti-rabbit IgG, HRP-linked antibody is then used to recognize the bound detection antibody. Chemiluminescent reagent is added for signal development. The magnitude of light emission, measured in relative light units (RLU), is proportional to the quantity of phospho-SAPK/JNK (Thr183/Tyr185) protein.
Antibodies in kit are custom formulations specific to kit.
PathScan® Phospho-SAPK/JNK (Thr183/Tyr185) Chemiluminescent Sandwich ELISA Kit #7849 detects endogenous levels of phospho-SAPK/JNK (Thr183/Tyr185) in human and mouse cells. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
The stress-activated protein kinase/Jun-amino-terminal kinase SAPK/JNK is potently and preferentially activated by a variety of environmental stresses including UV and gamma radiation, ceramides, inflammatory cytokines, and in some instances, growth factors and GPCR agonists (1-6). As with the other MAPKs, the core signaling unit is composed of a MAPKKK, typically MEKK1-MEKK4, or by one of the mixed lineage kinases (MLKs), which phosphorylate and activate MKK4/7. Upon activation, MKKs phosphorylate and activate the SAPK/JNK kinase (2). Stress signals are delivered to this cascade by small GTPases of the Rho family (Rac, Rho, cdc42) (3). Both Rac1 and cdc42 mediate the stimulation of MEKKs and MLKs (3). Alternatively, MKK4/7 can be activated in a GTPase-independent mechanism via stimulation of a germinal center kinase (GCK) family member (4). There are three SAPK/JNK genes each of which undergoes alternative splicing, resulting in numerous isoforms (3). SAPK/JNK, when active as a dimer, can translocate to the nucleus and regulate transcription through its effects on c-Jun, ATF-2, and other transcription factors (3,5).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. PathScan is a trademark of Cell Signaling Technology, Inc.
