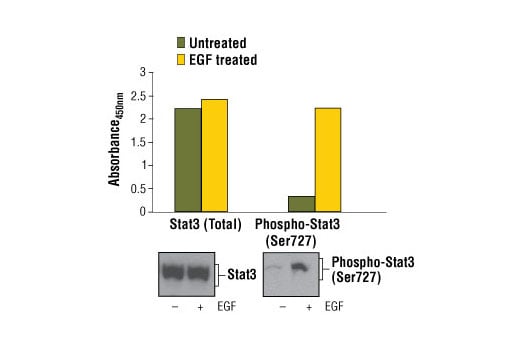

Figure 1: Treatment of A-431 cells with EGF stimulates phosphorylation of Stat3 at Ser727, as detected by PathScan® Phospho-Stat3 (Ser727) Sandwich ELISA Kit #7995, but does not affect levels of total Stat3 protein detected by PathScan® Total Stat3 Sandwich ELISA Kit #7305. The absorbance readings at 450 nm are shown in the top figure, while the corresponding western blots using Stat3 Antibody #9132 (left panel) or Phospho-Stat3 (Ser727) #9134 (right panel) are shown in the bottom figure.Learn more about how we get our images
Figure 2: The relationship between protein concentration of lysates from untreated and EGF-treated A431 cells and the absorbance at 450 nm is shown. After starvation, A431 cells (85% confluence) were treated with EGF (100 ng/ml) for 5 min at 37ºC and then lysed.Learn more about how we get our images
|Product Includes||Volume||Solution Color|
|Stat3 Rabbit mAb Coated Microwells||96 tests|
|Phospho-Stat3 (Ser727) Mouse Detection mAb||1 ea||Green (Lyophilized)|
|Anti-mouse IgG, HRP-linked Antibody (ELISA Formulated)||1 ea||Red (Lyophilized)|
|Detection Antibody Diluent||11 ml||Green|
|HRP Diluent||11 ml||Red|
|TMB Substrate 7004||11 ml|
|STOP Solution 7002||11 ml|
|Sealing Tape||2 ea|
|ELISA Wash Buffer (20X) 9801||25 ml|
|ELISA Sample Diluent||25 ml||Blue|
|Cell Lysis Buffer (10X) 9803||15 ml|
NOTE: Prepare solutions with purified water.
*NOTE: Some PathScan® ELISA Kits may include HRP-Linked Streptavidin in place of HRP-Linked Antibody.
NOTE: Initial color of positive reaction is blue, which changes to yellow upon addition of STOP Solution.
posted November 2013
The PathScan® Phospho-Stat3 (Ser727) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Stat3 protein phosphorylated at Ser727. A Stat3 rabbit mAb has been coated onto the microwells. After incubation with cell lysates, Stat3 (phospho or nonphospho) protein is captured by the coated antibody. Following extensive washing, a phospho-Stat3 (Ser727) mouse mAb is added to detect the captured phospho-Stat3 protein. Anti-mouse IgG, HRP-linked Antibody is then used to recognize the bound detection antibody. HRP substrate TMB is added to develop color. The magnitude of the absorbance for this developed color is proportional to the quantity of Stat3 phosphorylated at Ser727.
Antibodies in kit are custom formulations specific to kit.
PathScan® Phospho-Stat3 (Ser727) Sandwich ELISA Kit detects endogenous levels of Stat3 protein phosphorylated at Ser727 in human cells, as shown in Figure 1. The kit sensitivity is shown in Figure 2. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.
The Stat3 transcription factor is an important signaling molecule for many cytokines and growth factor receptors (1) and is required for murine fetal development (2). Research studies have shown that Stat3 is constitutively activated in a number of human tumors (3,4) and possesses oncogenic potential (5) and anti-apoptotic activities (3). Stat3 is activated by phosphorylation at Tyr705, which induces dimerization, nuclear translocation, and DNA binding (6,7). Transcriptional activation seems to be regulated by phosphorylation at Ser727 through the MAPK or mTOR pathways (8,9). Stat3 isoform expression appears to reflect biological function as the relative expression levels of Stat3α (86 kDa) and Stat3β (79 kDa) depend on cell type, ligand exposure, or cell maturation stage (10). It is notable that Stat3β lacks the serine phosphorylation site within the carboxy-terminal transcriptional activation domain (8).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. PathScan is a trademark of Cell Signaling Technology, Inc. U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
Explore pathways related to this product.
|7995C||1 Kit (96 assays)||$ 489.0|
