GIMAP5 Antibody #14108

REACTIVITY SENSITIVITY MW (kDa) SOURCE
H Endogenous 30,32 Rabbit
Western Blotting
enlarge

Western Blotting

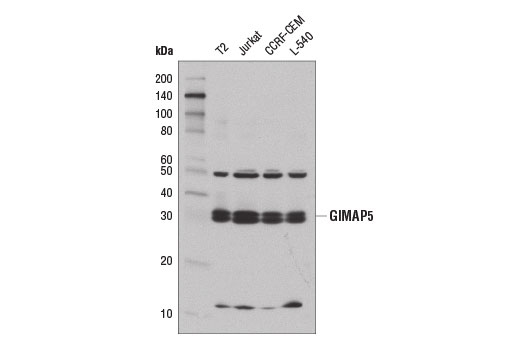

Western blot analysis of extracts from various cell lines using GIMAP5 Antibody.

Learn more about how we get our images
‹ 1 2 3 ›
‹ 1 2 3 ›
‹ 1 2 3 ›
‹ 1 2 3 ›
‹ 1 2 3 ›
‹ 1 2 3 ›
expand collapse

Protocol

Page
‹ 1 2 3 ›
PRINT

Western Blotting Protocol

For western blots, incubate membrane with diluted primary antibody in 5% w/v nonfat dry milk, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

NOTE: Please refer to primary antibody datasheet or product webpage for recommended antibody dilution.

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 10X Tris Buffered Saline (TBS): (#12498) To prepare 1 L 1X TBS: add 100 ml 10X to 900 ml dH2O, mix.
  3. 1X SDS Sample Buffer: Blue Loading Pack (#7722) or Red Loading Pack (#7723) Prepare fresh 3X reducing loading buffer by adding 1/10 volume 30X DTT to 1 volume of 3X SDS loading buffer. Dilute to 1X with dH2O.
  4. 10X Tris-Glycine SDS Running Buffer: (#4050) To prepare 1 L 1X running buffer: add 100 ml 10X running buffer to 900 ml dH2O, mix.
  5. 10X Tris-Glycine Transfer Buffer: (#12539) To prepare 1 L 1X Transfer Buffer: add 100 ml 10X Transfer Buffer to 200 ml methanol + 700 ml dH2O, mix.
  6. 10X Tris Buffered Saline with Tween® 20 (TBST): (#9997) To prepare 1 L 1X TBST: add 100 ml 10X TBST to 900 ml dH2O, mix.
  7. Nonfat Dry Milk: (#9999).
  8. Blocking Buffer: 1X TBST with 5% w/v nonfat dry milk; for 150 ml, add 7.5 g nonfat dry milk to 150 ml 1X TBST and mix well.
  9. Wash Buffer: (#9997) 1X TBST.
  10. Primary Antibody Dilution Buffer: 1X TBST with 5% nonfat dry milk; for 20 ml, add 1.0 g nonfat dry milk to 20 ml 1X TBST and mix well.
  11. Biotinylated Protein Ladder Detection Pack: (#7727).
  12. Prestained Protein Marker, Broad Range (11-190 kDa): (#13953).
  13. Blotting Membrane and Paper: (#12369) This protocol has been optimized for nitrocellulose membranes. Pore size 0.2 µm is generally recommended.
  14. Secondary Antibody Conjugated to HRP: Anti-rabbit IgG, HRP-linked Antibody (#7074).
  15. Detection Reagent: SignalFire™ ECL Reagent (#6883).

B. Protein Blotting

A general protocol for sample preparation.

  1. Treat cells by adding fresh media containing regulator for desired time.
  2. Aspirate media from cultures; wash cells with 1X PBS; aspirate.
  3. Lyse cells by adding 1X SDS sample buffer (100 µl per well of 6-well plate or 500 µl for a 10 cm diameter plate). Immediately scrape the cells off the plate and transfer the extract to a microcentrifuge tube. Keep on ice.
  4. Sonicate for 10–15 sec to complete cell lysis and shear DNA (to reduce sample viscosity).
  5. Heat a 20 µl sample to 95–100°C for 5 min; cool on ice.
  6. Microcentrifuge for 5 min.

  7. Load 20 µl onto SDS-PAGE gel (10 cm x 10 cm).

    NOTE: Loading of prestained molecular weight markers (#13953, 10 µl/lane) to verify electrotransfer and biotinylated protein ladder (#7727, 10 µl/lane) to determine molecular weights are recommended.

  8. Electrotransfer to nitrocellulose membrane (#12369).

C. Membrane Blocking and Antibody Incubations

NOTE: Volumes are for 10 cm x 10 cm (100 cm2) of membrane; for different sized membranes, adjust volumes accordingly.

I. Membrane Blocking

  1. (Optional) After transfer, wash nitrocellulose membrane with 25 ml TBS for 5 min at room temperature.
  2. Incubate membrane in 25 ml of blocking buffer for 1 hr at room temperature.
  3. Wash three times for 5 min each with 15 ml of TBST.

II. Primary Antibody Incubation

  1. Incubate membrane and primary antibody (at the appropriate dilution and diluent as recommended in the product datasheet) in 10 ml primary antibody dilution buffer with gentle agitation overnight at 4°C.
  2. Wash three times for 5 min each with 15 ml of TBST.
  3. Incubate membrane with Anti-rabbit IgG, HRP-linked Antibody (#7074 at 1:2000) and Anti-biotin, HRP-linked Antibody (#7075 at 1:1000–1:3000) to detect biotinylated protein markers in 10 ml of blocking buffer with gentle agitation for 1 hr at room temperature.
  4. Wash three times for 5 min each with 15 ml of TBST.
  5. Proceed with detection (Section D).

D. Detection of Proteins

Directions for Use:

  1. Wash membrane-bound HRP (antibody conjugate) three times for 5 minutes in TBST.
  2. Prepare 1X SignalFire™ ECL Reagent (#6883)by diluting one part 2X Reagent A and one part 2X Reagent B (e.g. for 10 ml, add 5 ml Reagent A and 5 ml Reagent B). Mix well.
  3. Incubate substrate with membrane for 1 minute, remove excess solution (membrane remains wet), wrap in plastic and expose to X-ray film.

* Avoid repeated exposure to skin.

posted June 2005

revised November 2013

Western Blot Reprobing Protocol

Reprobing of an existing membrane is a convenient means to immunoblot for multiple proteins independently when only a limited amount of sample is available. It should be noted that for the best possible results a fresh blot is always recommended. Reprobing can be a valuable method but with each reprobing of a blot there is potential for increased background signal. Additionally, it is recommended that you verify the removal of the first antibody complex prior to reprobing so that signal attributed to binding of the new antibody is not leftover signal from the first immunoblotting experiment. This can be done by re-exposing the blot to ECL reagents and making sure there is no signal prior to adding the next primary antibody.

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalently purified water.

  1. Wash Buffer: Tris Buffered Saline with Tween® 20 (TBST-10X) (#9997)
  2. Stripping Buffer: To prepare 100 ml, mix 6.25 ml of 1M Tris-HCl pH 6.8, 10 ml of 20% SDS and 700 μl β-mercaptoethanol. Bring to 100 ml with deionized H20. Make buffer fresh just prior to use.

B. Protocol

  1. After film exposure, wash membrane four times for 5 min each in TBST. Best results are obtained if the membrane is not allowed to dry.
  2. Incubate membrane for 30 min at 50°C in stripping buffer (with slight agitation).
  3. Wash membrane six times for 5 min each in TBST.
  4. (Optional) To assure that the original signal is removed, wash membrane twice for 5 min each with 10 ml of TBST. Incubate membrane with LumiGLO® with gentle agitation for 1 min at room temperature. Drain membrane of excess developing solution. Do not let dry. Wrap in plastic wrap and expose to x-ray film.
  5. Wash membrane again four times for 5 min each in TBST.
  6. The membrane is now ready to reuse. Start detection at the "Membrane Blocking and Antibody Incubations" step in the Western Immunoblotting Protocol.

posted June 2005

revised June 2016

Protocol Id: 263
Page
‹ 1 2 3 ›
PRINT

Immunoprecipitation for Native Proteins

This protocol is intended for immunoprecipitation of native proteins for analysis by western immunoblot or kinase activity utilizing magnetic separation.

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L of 1X PBS, add 50 ml 20X PBS to 950 ml dH2O, mix.

  2. 10X Cell Lysis Buffer: (#9803) To prepare 10 ml of 1X cell lysis buffer, add 1 ml cell lysis buffer to 9 ml dH2O, mix.

    NOTE: Add 1 mM PMSF (#8553) immediately prior to use.

  3. 3X SDS Sample Buffer: Blue Loading Pack (#7722) or Red Loading Pack (#7723) Prepare fresh 3X reducing loading buffer by adding 1/10 volume 30X DTT to 1 volume of 3X SDS loading buffer.
  4. Protein A Magnetic Beads: Use Protein A (#73778) for rabbit IgG immunoprecipitation.
  5. Magnetic Separation Rack: (#7017) or (#14654).
  6. 10X Kinase Buffer (for kinase assays): (#9802) To Prepare 1 ml of 1X kinase buffer, add 100 µl 10X kinase buffer to 900 µl dH2O, mix.
  7. ATP (10 mM) (for kinase assays): (#9804) To prepare 0.5 ml of ATP (200 µM), add 10 µl ATP (10 mM) to 490 µl 1X kinase buffer.

B. Preparing Cell Lysates

  1. Aspirate media. Treat cells by adding fresh media containing regulator for desired time.
  2. To harvest cells under nondenaturing conditions, remove media and rinse cells once with ice-cold 1X PBS.
  3. Remove PBS and add 0.5 ml ice-cold 1X cell lysis buffer to each plate (10 cm) and incubate on ice for 5 min.
  4. Scrape cells off the plate and transfer to microcentrifuge tubes. Keep on ice.
  5. Sonicate on ice three times for 5 sec each.
  6. Microcentrifuge for 10 min at 4°C, 14,000 x g and transfer the supernatant to a new tube. The supernatant is the cell lysate. If necessary, lysate can be stored at -80°C.

C. Immunoprecipitation

Cell Lysate Pre-Clearing (Optional)

A cell lysate pre-clearing step is highly recommended to reduce non-specific protein binding to the Protein A Magnetic beads. Pre-clear enough lysate for test samples and isotype controls.

  1. Briefly vortex the stock tube to resuspend the magnetic beads.

    IMPORTANT: Pre-wash #73778 magnetic beads just prior to use:

  2. Transfer 20 μl of bead slurry to a clean tube. Place the tube in a magnetic separation rack for 10-15 seconds.

    Carefully remove the buffer once the solution is clear. Add 500 μl of 1X cell lysis buffer to the magnetic bead pellet, briefly vortex to wash the beads. Place tube back in magnetic separation rack. Remove buffer once solution is clear. Repeat washing step once more.

  3. Add 200 μl cell lysate to 20 μl of pre-washed magnetic beads.

    IMPORTANT: The optimal lysate concentration will depend on the expression level of the protein of interest. A starting concentration between 250 μg/ml-1.0 mg/ml is recommended.

  4. Incubate with rotation for 20 minutes at room temperature.
  5. Separate the beads from the lysate using a magnetic separation rack, transfer the pre-cleared lysate to a clean tube, and discard the magnetic bead pellet.
  6. Proceed to immunoprecipitation section.

Immunoprecipitation

IMPORTANT: Appropriate isotype controls are highly recommended in order to show specific binding in your primary antibody immunoprecipitation. Use Normal Rabbit IgG #2729 for rabbit polyclonal primary antibodies, Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 for rabbit monoclonal primary antibodies, and Mouse (G3A1) mAb IgG1 Isotype Control #5415 for mouse monoclonal primary antibodies. Isotype controls should be concentration matched and run alongside the primary antibody samples

  1. Add primary antibody (at the appropriate dilution as recommended in the product datasheet) to 200 µl cell lysate. Incubate with rotation overnight at 4°C. to form the immunocomplex.
  2. Pre-wash magnetic beads (see Cell Lysate Pre-Clearing section, steps 1 and 2).
  3. Transfer the lysate and antibody (immunocomplex) solution to the tube containing the pre-washed magnetic bead pellet.
  4. Incubate with rotation for 20 min at room temperature.
  5. Pellet beads using magnetic separation rack. Wash pellets five times with 500 μl of 1X cell lysis buffer. Keep on ice between washes.
  6. Proceed to analyze by western immunoblotting or kinase activity (section D).

D. Sample Analysis

Proceed to one of the following specific set of steps.

For Analysis by Western Immunoblotting

  1. Resuspend the pellet with 20-40 µl 3X SDS sample buffer, briefly vortex to mix, and briefly microcentrifuge to pellet the sample.
  2. Heat the sample to 95-100°C for 5 min.
  3. Pellet beads using magnetic separation rack. Transfer the supernatant to a new tube. The supernatant is the sample.
  4. Analyze sample by western blot (see Western Immunoblotting Protocol).

NOTE: To minimize masking caused by denatured IgG heavy chains (~50 kDa), we recommend using Mouse Anti-Rabbit IgG (Light-Chain Specific) (D4W3E) mAb (#45262) or Mouse Anti-Rabbit IgG (Conformation Specific) (L27A9) mAb (#3678) (or HRP conjugate #5127). To minimize masking caused by denatured IgG light chains (~25 kDa), we recommend using Mouse Anti-Rabbit IgG (Conformation Specific) (L27A9) mAb (#3678) (or HRP conjugate #5127).

For Analysis by Kinase Assay

  1. Wash pellet twice with 500 µl 1X kinase buffer. Keep on ice.
  2. Suspend pellet in 40 µl 1X kinase buffer supplemented with 200 µM ATP and appropriate substrate.
  3. Incubate for 30 min at 30°C.
  4. Terminate reaction with 20 µl 3X SDS sample buffer. Vortex, then microcentrifuge for 30 sec.
  5. Transfer supernatant containing phosphorylated substrate to another tube.
  6. Heat the sample to 95-100°C for 2-5 min and microcentrifuge for 1 min at 14,000 x g.
  7. Load the sample (15-30 µl) on SDS-PAGE gel.

posted December 2008

revised October 2017

Protocol Id: 410
expand collapse

Product Usage Information

Application Dilutions
Western Blotting 1:1000
Immunoprecipitation 1:50

Storage: Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA and 50% glycerol. Store at –20°C. Do not aliquot the antibody.
expand collapse

Specificity / Sensitivity

GIMAP5 Antibody recognizes endogenous levels of total GIMAP5 protein. This antibody also recognizes proteins of unknown origin at 12 kDa and 50 kDa.


Species Reactivity: Human
expand collapse

Source / Purification

Polyclonal antibodies are produced by immunizing animals with a synthetic peptide corresponding to residues near the amino terminus of human GIMAP5 protein. Antibodies are purified by protein A and peptide affinity chromatography.

expand collapse

Background

GTPase immune-associated proteins (GIMAP), also known as immune-associated nucleotide-binding (IAN) proteins, are evolutionarily conserved GTP-binding proteins involved in lymphocyte development, inflammation, and autoimmune diseases (reviewed in 1,2). Human GTPase IMAP family member 5 (GIMAP5, hIan5) is the homolog of the rat Ian4 protein that is mutated in severe cases of T-cell lymphopenia and insulin-dependent diabetes in Biobreeding diabetes-prone (BB-DP) rats (3,4). GIMAP5 protein is preferentially expressed in CD4- and CD8-positive T-cells as well as B-cell lymphomas (4). Research studies using GIMAP5-deficient mice show that GIMAP5 protein is critical for survival of peripheral T-cells, hematopoietic stem cells, and progenitor cells (5-7). Additional studies indicate that GIMAP5 deficiency leads to a loss of immunological tolerance (8). Polymorphisms in the human GIMAP5 gene are associated with systemic lupus erythematosus and type I diabetes (9-11). Potential mechanisms for GIMAP5 control of cell survival include regulation of Bcl-2 family proteins, mitochondrial integrity, lysosomal function, and calcium regulation (7, 12-15).


1.  Nitta, T. and Takahama, Y. (2007) Trends Immunol 28, 58-65.

2.  Ciucci, T. and Bosselut, R. (2014) Eur J Immunol 44, 348-51.

3.  Hornum, L. et al. (2002) Diabetes 51, 1972-9.

4.  Zenz, T. et al. (2004) Genes Immun 5, 109-16.

5.  Pandarpurkar, M. et al. (2003) Proc Natl Acad Sci U S A 100, 10382-7.

6.  Schulteis, R.D. et al. (2008) Blood 112, 4905-14.

7.  Chen, Y. et al. (2011) J Exp Med 208, 923-35.

8.  Aksoylar, H.I. et al. (2012) J Immunol 188, 146-54.

9.  Hellquist, A. et al. (2007) J Med Genet 44, 314-21.

10.  Shin, J.H. et al. (2007) Genes Immun 8, 503-12.

11.  Lim, M.K. et al. (2009) Lupus 18, 1045-52.

12.  Pandarpurkar, M. et al. (2003) Proc Natl Acad Sci U S A 100, 10382-7.

13.  Keita, M. et al. (2007) Biochem Biophys Res Commun 361, 481-6.

14.  Wong, V.W. et al. (2010) Self Nonself 1, 259-268.

15.  Chen, X.L. et al. (2013) Biochem J 449, 353-64.


Entrez-Gene Id 55340
Swiss-Prot Acc. Q96F15
