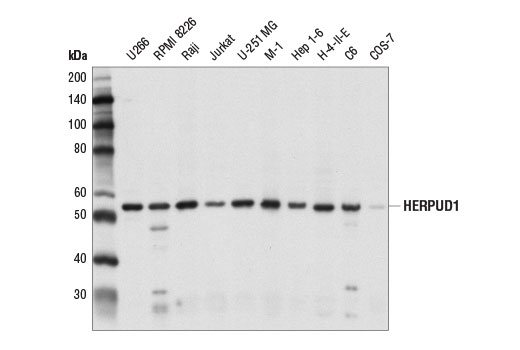

Western blot analysis of extracts from various cell lines using HERPUD1 Antibody.
Western blot analysis of extracts from HeLa cells, untreated (-) or treated with Thapsigargin #12758 (1 μM, 16 hr; +) or Tunicamycin #12819 (5 μg/ml, 16 hr; +), using HERPUD1 Antibody (upper) and GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human HERPUD1 protein (hHERPUD1-Myc/DDK; +) or Myc/DDK-tagged full-length human HERPUD2 protein (hHERPUD2-Myc/DDK; +), using HERPUD1 Antibody (upper) and DYKDDDDK Tag Antibody #2368 (lower).
|REACTIVITY||H M R Mk|
Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA and 50% glycerol. Store at –20°C. Do not aliquot the antibody.
For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.
NOTE: Please refer to primary antibody datasheet or product webpage for recommended antibody dilution.
From sample preparation to detection, the reagents you need for your Western Blot are now in one convenient kit: #12957 Western Blotting Application Solutions Kit
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.
Load 20 µl onto SDS-PAGE gel (10 cm x 10 cm).
NOTE: Volumes are for 10 cm x 10 cm (100 cm2) of membrane; for different sized membranes, adjust volumes accordingly.
* Avoid repeated exposure to skin.
posted June 2005
revised November 2013
Reprobing of an existing membrane is a convenient means to immunoblot for multiple proteins independently when only a limited amount of sample is available. It should be noted that for the best possible results a fresh blot is always recommended. Reprobing can be a valuable method but with each reprobing of a blot there is potential for increased background signal. Additionally, it is recommended that you verify the removal of the first antibody complex prior to reprobing so that signal attributed to binding of the new antibody is not leftover signal from the first immunoblotting experiment. This can be done by re-exposing the blot to ECL reagents and making sure there is no signal prior to adding the next primary antibody.
NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalently purified water.
posted June 2005
revised October 2016
Protocol Id: 10
HERPUD1 Antibody recognizes endogenous levels of total HERPUD1 protein. This antibody also cross-reacts with unidentified proteins of 30 kDa and 48 kDa. This antibody does not cross-react with HERPUD2 protein.Species Reactivity:
Human, Mouse, Rat, Monkey
Polyclonal antibodies are produced by immunizing animals with a synthetic peptide corresponding to residues near the amino terminus of human HERPUD1 protein. Antibodies are purified by protein A and peptide affinity chromatography.
The homocysteine-responsive, ER-resident ubiquitin-like domain member 1 protein (HERPUD1) is an ER membrane protein and putative component of the ER-membrane-associated protein degradation (ERAD) pathway (1). HERPUD1 is a transmembrane protein with both amino- and carboxy-termini exposed to the cytoplasm. The amino-terminal HERPUD1 region contains an ubiquitin-like (UBL) domain (1). Increased expression of HERPUD1 protein following ER stress and its association with ERAD component proteins suggests that HERPUD1 may play an integral role in ERAD pathway function (1). Research studies demonstrate that HERPUD1 associates with components of the ERAD machinery, such as the E3 ubiquitin ligase HRD1, which enhances HRD1-mediated ubiquitination and proteasomal degradation of potentially toxic ERAD substrates (2-4). The HERPUD1 protein may act as a molecular adaptor for the recruitment of ERAD machinery and the amino-terminal UBL domain may important for this function (3,4). The loss of HERPUD1 expression renders cells more susceptible to ER stress and apoptosis (5,6).
