HSP90 Antibody
Primary Antibodies
Polyclonal Antibody

HSP90 Antibody #4874

Reviews ()
Citations (173)
Filter:
  1. WB
  2. IHC

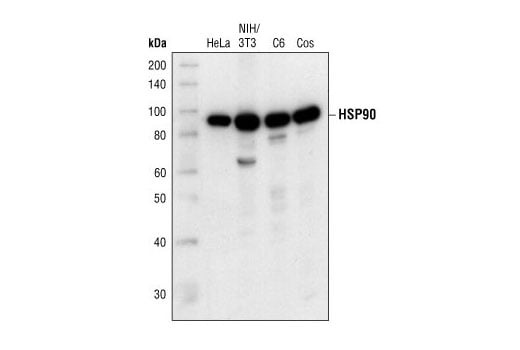

Western Blotting Image 1 - HSP90 Antibody

Western blot analysis of extracts from HeLa, NIH/3T3, C6 and COS cells using HSP90 Antibody.

Immunohistochemistry Image 1 - HSP90 Antibody

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, using HSP90 Antibody.

Immunohistochemistry Image 2 - HSP90 Antibody

Immunohistochemical analysis of paraffin-embedded human lung carcinoma, showing cytoplasmic and nuclear localization, using HSP90 Antibody.

Immunohistochemistry Image 3 - HSP90 Antibody

Immunohistochemical analysis of paraffin-embedded human Non-Hodgkin's lymphoma, using HSP90 Antibody.

Immunohistochemistry Image 4 - HSP90 Antibody

Immunohistochemical analysis of paraffin-embedded human prostate carcinoma, using HSP90 Antibody.

To Purchase # 4874S
Product # Size Price
4874S
100 µl $ 268

Supporting Data

REACTIVITY H M R Mk Dm Z
SENSITIVITY Endogenous
MW (kDa) 90
SOURCE Rabbit

Application Key:

  • W-Western
  • IP-Immunoprecipitation
  • IHC-Immunohistochemistry
  • ChIP-Chromatin Immunoprecipitation
  • IF-Immunofluorescence
  • F-Flow Cytometry
  • E-P-ELISA-Peptide

Species Cross-Reactivity Key:

  • H-Human
  • M-Mouse
  • R-Rat
  • Hm-Hamster
  • Mk-Monkey
  • Mi-Mink
  • C-Chicken
  • Dm-D. melanogaster
  • X-Xenopus
  • Z-Zebrafish
  • B-Bovine
  • Dg-Dog
  • Pg-Pig
  • Sc-S. cerevisiae
  • Ce-C. elegans
  • Hr-Horse
  • All-All Species Expected

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunohistochemistry (Paraffin) 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA and 50% glycerol. Store at –20°C. Do not aliquot the antibody.

Protocol

PRINT

View >Collapse >

Western Blotting Protocol

For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

NOTE: Please refer to primary antibody product webpage for recommended antibody dilution.

A. Solutions and Reagents

From sample preparation to detection, the reagents you need for your Western Blot are now in one convenient kit: #12957 Western Blotting Application Solutions Kit

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 20X Phosphate Buffered Saline (PBS): (#9808) To prepare 1 L 1X PBS: add 50 ml 20X PBS to 950 ml dH2O, mix.
  2. 10X Tris Buffered Saline (TBS): (#12498) To prepare 1 L 1X TBS: add 100 ml 10X to 900 ml dH2O, mix.
  3. 1X SDS Sample Buffer: Blue Loading Pack (#7722) or Red Loading Pack (#7723) Prepare fresh 3X reducing loading buffer by adding 1/10 volume 30X DTT to 1 volume of 3X SDS loading buffer. Dilute to 1X with dH2O.
  4. 10X Tris-Glycine SDS Running Buffer: (#4050) To prepare 1 L 1X running buffer: add 100 ml 10X running buffer to 900 ml dH2O, mix.
  5. 10X Tris-Glycine Transfer Buffer: (#12539) To prepare 1 L 1X Transfer Buffer: add 100 ml 10X Transfer Buffer to 200 ml methanol + 700 ml dH2O, mix.
  6. 10X Tris Buffered Saline with Tween® 20 (TBST): (#9997) To prepare 1 L 1X TBST: add 100 ml 10X TBST to 900 ml dH2O, mix.
  7. Nonfat Dry Milk: (#9999).
  8. Blocking Buffer: 1X TBST with 5% w/v nonfat dry milk; for 150 ml, add 7.5 g nonfat dry milk to 150 ml 1X TBST and mix well.
  9. Wash Buffer: (#9997) 1X TBST.
  10. Bovine Serum Albumin (BSA): (#9998).
  11. Primary Antibody Dilution Buffer: 1X TBST with 5% BSA; for 20 ml, add 1.0 g BSA to 20 ml 1X TBST and mix well.
  12. Biotinylated Protein Ladder Detection Pack: (#7727).
  13. Prestained Protein Marker, Broad Range (11-190 kDa): (#13953).
  14. Blotting Membrane and Paper: (#12369) This protocol has been optimized for nitrocellulose membranes. Pore size 0.2 µm is generally recommended.
  15. Secondary Antibody Conjugated to HRP: Anti-rabbit IgG, HRP-linked Antibody (#7074).
  16. Detection Reagent: SignalFire™ ECL Reagent (#6883).

B. Protein Blotting

A general protocol for sample preparation.

  1. Treat cells by adding fresh media containing regulator for desired time.
  2. Aspirate media from cultures; wash cells with 1X PBS; aspirate.
  3. Lyse cells by adding 1X SDS sample buffer (100 µl per well of 6-well plate or 500 µl for a 10 cm diameter plate). Immediately scrape the cells off the plate and transfer the extract to a microcentrifuge tube. Keep on ice.
  4. Sonicate for 10–15 sec to complete cell lysis and shear DNA (to reduce sample viscosity).
  5. Heat a 20 µl sample to 95–100°C for 5 min; cool on ice.
  6. Microcentrifuge for 5 min.
  7. Load 20 µl onto SDS-PAGE gel (10 cm x 10 cm).

    NOTE: Loading of prestained molecular weight markers (#13953, 5 µl/lane) to verify electrotransfer and biotinylated protein ladder (#7727, 10 µl/lane) to determine molecular weights are recommended.

  8. Electrotransfer to nitrocellulose membrane (#12369).

C. Membrane Blocking and Antibody Incubations

NOTE: Volumes are for 10 cm x 10 cm (100 cm2) of membrane; for different sized membranes, adjust volumes accordingly.

I. Membrane Blocking

  1. (Optional) After transfer, wash nitrocellulose membrane with 25 ml TBS for 5 min at room temperature.
  2. Incubate membrane in 25 ml of blocking buffer for 1 hr at room temperature.
  3. Wash three times for 5 min each with 15 ml of TBST.

II. Primary Antibody Incubation

  1. Incubate membrane and primary antibody (at the appropriate dilution and diluent as recommended in the product webpage) in 10 ml primary antibody dilution buffer with gentle agitation overnight at 4°C.
  2. Wash three times for 5 min each with 15 ml of TBST.
  3. Incubate membrane with Anti-rabbit IgG, HRP-linked Antibody (#7074 at 1:2000) and anti-biotin, HRP-linked Antibody (#7075 at 1:1000–1:3000) to detect biotinylated protein markers in 10 ml of blocking buffer with gentle agitation for 1 hr at room temperature.
  4. Wash three times for 5 min each with 15 ml of TBST.
  5. Proceed with detection (Section D).

D. Detection of Proteins

Directions for Use:

  1. Wash membrane-bound HRP (antibody conjugate) three times for 5 minutes in TBST.
  2. Prepare 1X SignalFire™ ECL Reagent (#6883) by diluting one part 2X Reagent A and one part 2X Reagent B (e.g. for 10 ml, add 5 ml Reagent A and 5 ml Reagent B). Mix well.
  3. Incubate substrate with membrane for 1 minute, remove excess solution (membrane remains wet), wrap in plastic and expose to X-ray film.

* Avoid repeated exposure to skin.

posted June 2005

revised June 2020

Protocol Id: 10

Immunohistochemistry (Paraffin)

A. Solutions and Reagents

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. Xylene.
  2. Ethanol, anhydrous denatured, histological grade (100% and 95%).
  3. Deionized water (dH2O).
  4. Hematoxylin (optional).
  5. Wash Buffer:
    1. 1X Tris Buffered Saline with Tween® 20 (TBST): To prepare 1L 1X TBST add 100 ml 10X Tris Buffered Saline with Tween® 20 (#9997) to 900 ml dH20, mix.
  6. SignalStain® Antibody Diluent (#8112).
  7. 1X Citrate Unmasking Solution: To prepare 250 mL of 1X citrate unmasking solution, dilute 25 ml of SignalStain® Citrate Unmasking Solution (10X) (#14746) with 225 mL of dH2O.
  8. 3% Hydrogen Peroxide: To prepare 100 ml, add 10 ml 30% H2O2 to 90 ml dH2O.
  9. Blocking Solution: TBST/5% Normal Goat Serum or 1X Animal-Free Blocking Solution.
    1. TBST/5% Normal Goat Serum: to 5 ml 1X TBST, add 250 µl Normal Goat Serum (#5425).
    2. 1X Animal-Free Blocking Solution: to 4 mL of dH2O add 1 ml of Animal-Free Blocking Solution (5X) (#15019).
  10. Detection System: SignalStain® Boost IHC Detection Reagents (HRP, Rabbit #8114).
  11. Substrate: SignalStain® DAB Substrate Kit (#8059).
  12. Hematoxylin: Hematoxylin (#14166).
  13. Mounting Medium: SignalStain® Mounting Medium (#14177).

B. Deparaffinization/Rehydration

NOTE: Do not allow slides to dry at any time during this procedure.

  1. Deparaffinize/hydrate sections:
    1. Incubate sections in three washes of xylene for 5 min each.
    2. Incubate sections in two washes of 100% ethanol for 10 min each.
    3. Incubate sections in two washes of 95% ethanol for 10 min each.
  2. Wash sections two times in dH2O for 5 min each.

C. Antigen Unmasking

For Citrate: Heat slides in a microwave submersed in 1X citrate unmasking solution until boiling is initiated; follow with 10 min at a sub-boiling temperature (95°-98°C). Cool slides on bench top for 30 min.

D. Staining

  1. Wash sections in dH2O three times for 5 min each.
  2. Incubate sections in 3% hydrogen peroxide for 10 min.
  3. Wash sections in dH2O two times for 5 min each.
  4. Wash sections in wash buffer for 5 min.
  5. Block each section with 100–400 µl of preferred blocking solution for 1 hr at room temperature.
  6. Remove blocking solution and add 100–400 µl primary antibody diluted in SignalStain® Antibody Diluent (#8112) to each section. Incubate overnight at 4°C.
  7. Equilibrate SignalStain® Boost Detection Reagent (HRP, Rabbit #8114) to room temperature.
  8. Remove antibody solution and wash sections with wash buffer three times for 5 min each.
  9. Cover section with 1–3 drops SignalStain® Boost Detection Reagent (HRP, Rabbit #8114) as needed. Incubate in a humidified chamber for 30 min at room temperature.
  10. Wash sections three times with wash buffer for 5 min each.
  11. Add 1 drop (30 µl) SignalStain® DAB Chromogen Concentrate to 1 ml SignalStain® DAB Diluent and mix well before use.
  12. Apply 100–400 µl SignalStain® DAB to each section and monitor closely. 1–10 min generally provides an acceptable staining intensity.
  13. Immerse slides in dH2O.
  14. If desired, counterstain sections with hematoxylin (#14166).
  15. Wash sections in dH2O two times for 5 min each.
  16. Dehydrate sections:
    1. Incubate sections in 95% ethanol two times for 10 sec each.
    2. Repeat in 100% ethanol, incubating sections two times for 10 sec each.
    3. Repeat in xylene, incubating sections two times for 10 sec each.
  17. Mount sections with coverslips and mounting medium (#14177).

DETECTION REAGENT/SUBSTRATE COMPATIBILITY
RECOMMENDED
DETECTION REAGENTS
SignalStain® Boost IHC Detection Reagent (HRP, Rabbit) #8114 SignalStain® Boost IHC Detection Reagent (AP, Rabbit) #18653
COMPATIBLE
CHROMOGEN
SignalStain® DAB Substrate Kit #8059 SignalStain® Vibrant Red Alkaline Phosphatase Substrate Kit #76713
SignalStain® Vivid Purple Peroxidase Substrate Kit #96632

NOTE: Use of detection reagents other than those specified in this protocol may require further optimization of the primary antibody to account for the different sensitivities of the detection reagents.


posted February 2010

revised June 2020

Protocol Id: 283

Specificity / Sensitivity

HSP90 Antibody detects endogenous levels of total HSP90 protein, alpha and beta isoforms. This antibody does not cross-react with other HSPs.

Species Reactivity:

Human, Mouse, Rat, Monkey, D. melanogaster, Zebrafish

Species predicted to react based on 100% sequence homology:

Chicken, Bovine

Source / Purification

Polyclonal antibodies are produced by immunizing animals with synthetic peptides corresponding to human HSP90. Antibodies are purified by protein A and peptide affinity chromatography.

Background

HSP70 and HSP90 are molecular chaperones expressed constitutively under normal conditions to maintain protein homeostasis and are induced upon environmental stress (1). Both HSP70 and HSP90 are able to interact with unfolded proteins to prevent irreversible aggregation and catalyze the refolding of their substrates in an ATP- and co-chaperone-dependent manner (1). HSP70 has a broad range of substrates including newly synthesized and denatured proteins, while HSP90 tends to have a more limited subset of substrates, most of which are signaling molecules. HSP70 and HSP90 often function collaboratively in a multi-chaperone system, which requires a minimal set of co-chaperones: HSP40, Hop, and p23 (2,3). The co-chaperones either regulate the intrinsic ATPase activity of the chaperones or recruit chaperones to specific substrates or subcellular compartments (1,4). When the ubiquitin ligase CHIP associates with the HSP70/HSP90 complex as a cofactor, the unfolded substrates are subjected to degradation by the proteasome (4). The biological functions of HSP70/HSP90 extend beyond their chaperone activity. They are essential for the maturation and inactivation of nuclear hormones and other signaling molecules (1,3). They also play a role in vesicle formation and protein trafficking (2).

  1. Nollen, E.A. and Morimoto, R.I. (2002) J Cell Sci 115, 2809-16.
  2. Young, J.C. et al. (2003) Trends Biochem Sci 28, 541-7.
  3. Pratt, W.B. and Toft, D.O. (2003) Exp. Biol. Med. 228, 111-133.
  4. Hohfeld, J. et al. (2001) EMBO Rep. 2, 885-890.
