8216
PhosphoPlus® Notch1 (Cleaved, Val1744) Antibody Duet

PhosphoPlus® Notch1 (Cleaved, Val1744) Antibody Duet #8216

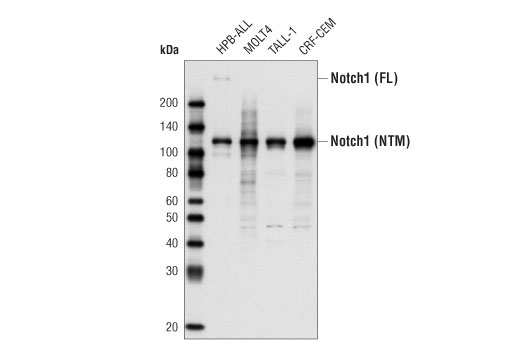

Western Blotting Image 1

Western blot analysis of total cell extract from various cell types using Notch1 (D1E11) XP® Rabbit mAb. The full-length (FL) Notch protein and the cleaved transmembrane/intracellular region (NTM) are indicated.

Learn more about how we get our images

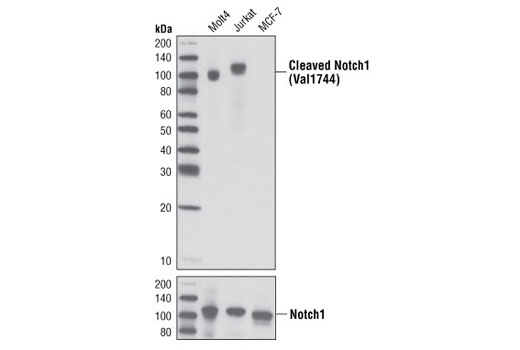

Western Blotting Image 2

Western blot analysis of extracts from various cell lines using Cleaved Notch1 (Val1744) (D3B8) Rabbit mAb (upper) or Notch1 (D1E11) XP® Rabbit mAb #3608 (lower).

Learn more about how we get our images
IHC-P (paraffin) Image 3

Immunohistochemical analysis of paraffin-embedded human inflammatory granulation tissue using Notch1 (D1E11) XP® Rabbit mAb.

Learn more about how we get our images
Chromatin IP Image 4

CUTLL1 cells were cultured in media with γ-secretase inhibitor (1μM) for 3 days and then either harvested immediately (left panel) or washed and cultured in fresh media for 3h (right panel). Chromatin immunoprecipitations were performed with cross-linked chromatin from cells and Cleaved Notch1 (Val1744) (D3B8) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human HES1 promoter primers, SimpleChIP® Human HES4 Promoter Primers #7273, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Learn more about how we get our images
IHC-P (paraffin) Image 5

Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Notch1 (D1E11) XP® Rabbit mAb.

Learn more about how we get our images
IHC-P (paraffin) Image 6

Immunohistochemical analysis of paraffin-embedded A2780 (left), Jurkat (center) and RL (right) cell pellets using Notch1 (D1E11) XP® Rabbit mAb. Both A2780 and Jurkat express Notch1, but only Jurkat cells have cleaved Notch1, while RL cells express very low or no Notch1.

Learn more about how we get our images
IHC-P (paraffin) Image 7

Immunohistochemical analysis of paraffin-embedded human stomach adjacent to MALT (mucosa-associated lymphoid tissue) lymphoma using Notch1 (D1E11) XP® Rabbit mAb.

Learn more about how we get our images
Chromatin IP Image 8

CUTLL1 cells were cultured in media with γ-secretase inhibitor (1 μM) for 3 days and then either harvested immediately (left panel) or washed and cultured in fresh media for 3 hr (right panel). Chromatin immunoprecipitations were performed with cross-linked chromatin from cells and Notch1 (D1E11) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using human HES1 promoter primers, SimpleChIP® Human HES4 Promoter Primers #7273, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Learn more about how we get our images
Product Includes Quantity Applications Reactivity MW(kDa) Isotype
Notch1 (D1E11) XP® Rabbit mAb 3608 100 µl
  • WB
  • IP
  • IHC
  • ChIP
H M R 120, 300 Rabbit IgG
Cleaved Notch1 (Val1744) (D3B8) Rabbit mAb 4147 100 µl
  • WB
  • IP
  • ChIP
H M R 110 Rabbit IgG

PhosphoPlus® Duets from Cell Signaling Technology (CST) provide a means to assess protein activation status. Each Duet contains an activation-state and total protein antibody to your target of interest. These antibodies have been selected from CST's product offering based upon superior performance in specified applications.

Notch proteins (Notch1-4) are a family of transmembrane receptors that play important roles in development and the determination of cell fate (1). Mature Notch receptors are processed and assembled as heterodimeric proteins, with each dimer comprised of a large extracellular ligand-binding domain, a single-pass transmembrane domain, and a smaller cytoplasmic subunit (Notch intracellular domain, NICD) (2). Binding of Notch receptors to ligands of the Delta-Serrate-Lag2 (DSL) family triggers heterodimer dissociation, exposing the receptors to proteolytic cleavages; these result in release of the NICD, which translocates to the nucleus and activates transcription of downstream target genes (3,4).

  1. Artavanis-Tsakonas, S. et al. (1999) Science 284, 770-6.
  2. Chan, Y.M. and Jan, Y.N. (1998) Cell 94, 423-6.
  3. Schroeter, E.H. et al. (1998) Nature 393, 382-6.
  4. Rand, M.D. et al. (2000) Mol Cell Biol 20, 1825-35.
For Research Use Only. Not For Use In Diagnostic Procedures.
