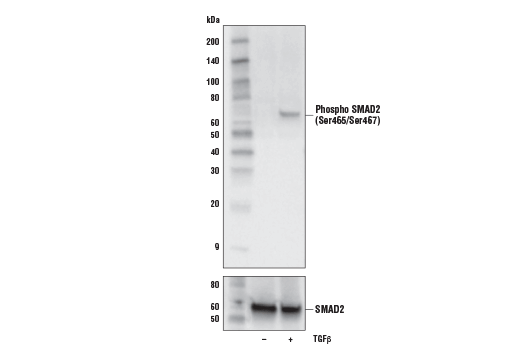

Western blot analysis of extracts from untreated or TGF-beta treated HeLa and NIH/3T3 cells, using Phospho-Smad2 (Ser465/467) (138D4) Rabbit mAb (upper), or Smad2 Antibody #3102 (lower).Learn more about how we get our images
Western blot analysis of extracts from various cell lines using Smad2 (D43B4) XP® Rabbit mAb.Learn more about how we get our images
Flow cytometric analysis of HeLa cells using Smad2 (D43B4) XP® Rabbit mAb (blue) compared to a nonspecific negative control antibody (red).Learn more about how we get our images
Confocal immunofluorescent analysis of NIH/3T3 cells, serum-starved (left) or treated with hTGF-β3 #8425 (right), using Smad2 (D43B4) XP® Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red).Learn more about how we get our images
Chromatin immunoprecipitations were performed with cross-linked chromatin from HaCaT cells treated with Human TGF-β3 #8425 (7 ng/ml) for 1 h and either Smad2 (D43B4) XP® Rabbit mAb #5339 or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human CDKN1A Intron 1 Primers #4669, SimpleChIP® Human ID1 Promoter Primers #5139, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.Learn more about how we get our images
|Phospho-Smad2 (Ser465/467) (138D4) Rabbit mAb 3108||100 µl||
||H M R Mi||60||Rabbit IgG|
|Smad2 (D43B4) XP® Rabbit mAb 5339||100 µl||
||H M R Mk||60||Rabbit IgG|
PhosphoPlus® Duets from Cell Signaling Technology (CST) provide a means to assess protein activation status. Each Duet contains an activation-state and total protein antibody to your target of interest. These antibodies have been selected from CST's product offering based upon superior performance in specified applications.
Members of the Smad family of signal transduction molecules are components of a critical intracellular pathway that transmit TGF-β signals from the cell surface into the nucleus. Three distinct classes of Smads have been defined: the receptor-regulated Smads (R-Smads), which include Smad1, 2, 3, 5, and 8; the common-mediator Smad (co-Smad), Smad4; and the antagonistic or inhibitory Smads (I-Smads), Smad6 and 7 (1-5). Activated type I receptors associate with specific R-Smads and phosphorylate them on a conserved carboxy terminal SSXS motif. The phosphorylated R-Smad dissociates from the receptor and forms a heteromeric complex with the co-Smad (Smad4), allowing translocation of the complex to the nucleus. Once in the nucleus, Smads can target a variety of DNA binding proteins to regulate transcriptional responses (6-8).
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc. PhosphoPlus is a trademark of Cell Signaling Technology, Inc.
Explore pathways related to this product.
|11958S||1 Kit (10 western blots)||$510.00.0|
