PTMScan® Carboxymethyl/Carboxyethyl Lysine Motif Kit
Proteomic Analysis Products

PTMScan® Carboxymethyl/Carboxyethyl Lysine Motif Kit #17011

Reviews ()
Citations (0)
PTMScan® Carboxymethyl/Carboxyethyl Lysine Motif Kit: Image 1

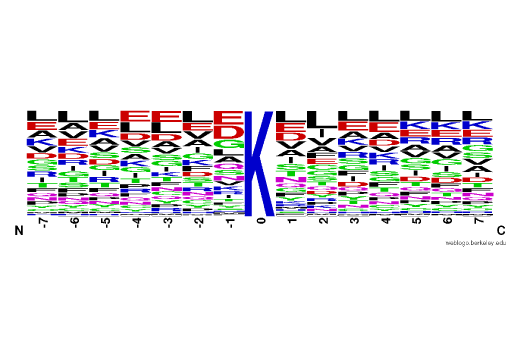

Motif analysis of tryptic peptides from 293 human embryonic kidney cells enriched and identified by PTMScan® Carboxymethyl/Carboxyethyl Lysine Motif Kit. Untreated protein was pooled with glyoxal and methylglyoxal treated protein in a 4:1 mass ratio prior to trypsin digestion, where five milligrams of the resulting peptides were immunoprecipitated with PTMScan® Carboxymethyl/Carboxyethyl Lysine Immunoaffinity Beads. Orbitrap Q Exactive mass spectrometer analysis identified a total of 9,432 non-redundant modified sites.
Product Includes Volume (with Count)
PTMScan® Carboxymethyl/Carboxyethyl Lysine Immunoaffinity Beads 10 x 80 µl
PTMScan® IAP Buffer (10X) 9993 10 x 600 µl


Antibody beads supplied in IAP buffer containing 50% glycerol. Store at –20°C. Do not aliquot the antibody.

Product Description

PTMScan® Technology employs a proprietary methodology from Cell Signaling Technology (CST) for peptide enrichment by immunoprecipitation using a specific bead-conjugated antibody in conjunction with liquid chromatography (LC) tandem mass spectrometry (MS/MS) for quantitative profiling of post-translational modification (PTM) sites in cellular proteins. These include phosphorylation (PhosphoScan®), ubiquitination (UbiScan®), acetylation (AcetylScan®), and methylation (MethylScan®), among others. PTMScan® Technology enables researchers to isolate, identify, and quantitate large numbers of post-translationally modified cellular peptides with a high degree of specificity and sensitivity, providing a global overview of PTMs in cell and tissue samples without preconceived biases about where these modified sites occur (1).


Carboxymethyl lysine (CML) and carboxyethyl lysine (CEL) are two protein post-translational modifications that arise from non-enzymatic pathways and represent examples of advanced glycation end products (AGEs) (1). The association between CML/CEL levels with glucose and oxidant stress levels underlies the use of these modifications as biomarkers for various disease conditions, including diabetes and osteoporosis (2). The Maillard reaction between monosaccharides and lysines can form a Schiff base intermediate that rearranges to become CML/CEL. In addition, fragmentation of the Schiff base intermediate and oxidation of amino acids and polyunsaturated fatty acids produce reactive species, such as glyoxal and methylglyoxal, which react with lysine to form CML/CEL. While CML/CEL exists as free and protein-incorporated forms, in vitro treatment with protein-incorporated CML/CEL in particular induces diverse effects, including reduced serotonin release in gastric cells, impaired calcium homeostasis in cardiac cells, and increased reactive oxygen intermediates in endothelial cells (3-5). These processes depend on receptor for AGE (RAGE) signaling.
  1. Nevin, C. et al. (2018) Sci Rep 8, 9002.
  2. Asadipooya, K. and Uy, E.M. (2019) J Endocr Soc 3, 1799-1818.
  3. Holik, A.K. et al. (2018) Food Funct 9, 3906-3915.
  4. Petrova, R. et al. (2002) J Mol Cell Cardiol 34, 1425-31.
  5. Yan, S.D. et al. (1994) J Biol Chem 269, 9889-97.
