Upstream / Downstream

pathwayImage

Explore pathways related to this product.

Important Ordering Details

Custom Ordering Details: Product is assembled upon order. Please allow up to three business days for your product to be processed.

Antibody Guarantee

CST Antibody Performance Guarantee

LEARN MORE

To Purchase # 13830S

13830S 300 µl (3 nmol) $249.00
$0.00

Questions?

Find answers on our FAQs page.

ANSWERS

PhosphoSitePlus® Resource

  • Additional protein information
  • Analytical tools

LEARN MORE

REACTIVITY
H

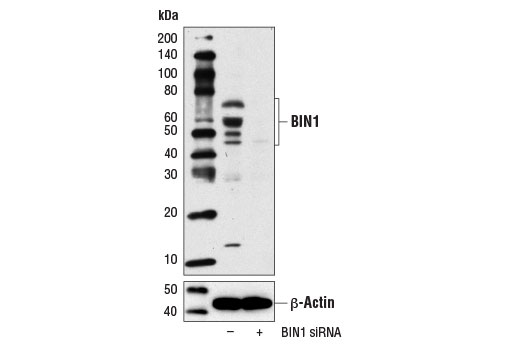

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® BIN1 siRNA I (+), using BIN1 Antibody #13679 (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The BIN1 Antibody confirms silencing of BIN1 expression, while the β-Actin (D6A8) Rabbit mAb is used as a loading control.

Learn more about how we get our images

Product Usage Information

CST recommends transfection with 100 nM SignalSilence® BIN1 siRNA I 48 to 72 hours prior to cell lysis. For transfection procedure, follow protocol provided by the transfection reagent manufacturer. Please feel free to contact CST with any questions on use.

Each vial contains the equivalent of 100 transfections, which corresponds to a final siRNA concentration of 100 nM per transfection in a 24-well plate with a total volume of 300 μl per well.


Storage: SignalSilence® siRNA is supplied in RNAse-free water. Aliquot and store at -20ºC.

Product Description

SignalSilence® BIN1 siRNA I from Cell Signaling Technology (CST) allows the researcher to specifically inhibit BIN1 expression using RNA interference, a method whereby gene expression can be selectively silenced through the delivery of double stranded RNA molecules into the cell. All SignalSilence® siRNA products from CST are rigorously tested in-house and have been shown to reduce target protein expression by western analysis.


Quality Control

Oligonucleotide synthesis is monitored base by base through trityl analysis to ensure appropriate coupling efficiency. The oligo is subsequently purified by affinity-solid phase extraction. The annealed RNA duplex is further analyzed by mass spectrometry to verify the exact composition of the duplex. Each lot is compared to the previous lot by mass spectrometry to ensure maximum lot-to-lot consistency.

Bridging integrator 1 (BIN1, AMPHL) is an adaptor protein and putative tumor suppressor expressed as multiple isoforms due to alternative splicing. The BIN1 protein was originally identified as a Myc box-interacting protein with structural similarity to the synaptic vesicle protein amphiphysin (1). BIN1 protein structure contains an amino-terminal amphipathic helix and a BAR domain that is involved in sensing membrane curvature. The protein also includes a Myc-binding domain and a SH3 domain, which are implicated in protein-protein interactions (1). Multiple BIN1 isoforms range in size from approximately 45 to 65 kDa, with the nuclear BIN1 isoform found mostly in skeletal muscle and the cytoplasmic IIA isoform expressed in axon initial segments and nodes of Ranvier of the brain (2,3). Corresponding BIN1 gene mutations and incorrect splicing can lead to impaired BIN1 membrane-tabulating and protein binding activities, resulting in development of autosomal recessive centronuclear myopathy and myotonic dystrophy (4,5). Genome-wide association studies link the BIN1 gene with late onset Alzheimer disease (AD) and increased BIN1 mRNA expression is seen in AD brains (6,7).


1.  Sakamuro, D. et al. (1996) Nat Genet 14, 69-77.

2.  Ge, K. and Prendergast, G.C. (2000) Genomics 67, 210-20.

3.  Ramjaun, A.R. et al. (1997) J Biol Chem 272, 16700-6.

4.  Nicot, A.S. et al. (2007) Nat Genet 39, 1134-9.

5.  Fugier, C. et al. (2011) Nat Med 17, 720-5.

6.  Seshadri, S. et al. (2010) JAMA 303, 1832-40.

7.  Chapuis, J. et al. (2013) Mol Psychiatry 18, 1225-34.


Entrez-Gene Id 274
Swiss-Prot Acc. O00499


For Research Use Only. Not For Use In Diagnostic Procedures.
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
SignalSilence is a registered trademark of Cell Signaling Technology, Inc.

13830
SignalSilence® BIN1 siRNA I
