SignalSilence® Miz-1 siRNA I

SignalSilence® Miz-1 siRNA I #12335

This product is discontinued

Western Blotting

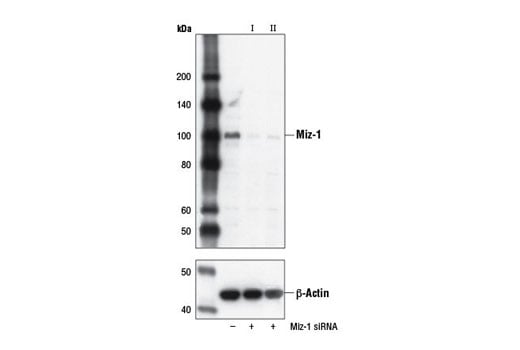

Western blot analysis of extracts from HaCaT cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Miz-1 siRNA I (+), or SignalSilence® Miz-1 siRNA II #12405 (+), using Miz-1 Antibody #9044 (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The Miz-1 Antibody confirms silencing of Miz-1 expression, while the β-Actin (D6A8) Rabbit mAb is used as a loading control.

Learn more about how we get our images

CST recommends transfection with 100 nM SignalSilence® Miz-1 siRNA I 48 to 72 hours prior to cell lysis. For transfection procedure, follow protocol provided by the transfection reagent manufacturer. Please feel free to contact CST with any questions on use.

Each vial contains the equivalent of 100 transfections, which corresponds to a final siRNA concentration of 100 nM per transfection in a 24-well plate with a total volume of 300 μl per well.


SignalSilence® siRNA is supplied in RNAse-free water. Aliquot and store at -20ºC.

SignalSilence® Miz-1 siRNA I from Cell Signaling Technology (CST) allows the researcher to specifically inhibit Miz-1 expression using RNA interference, a method whereby gene expression can be selectively silenced through the delivery of double stranded RNA molecules into the cell. All SignalSilence® siRNA products from CST are rigorously tested in-house and have been shown to reduce target protein expression by western analysis.

Oligonucleotide synthesis is monitored base by base through trityl analysis to ensure appropriate coupling efficiency. The oligo is subsequently purified by affinity-solid phase extraction. The annealed RNA duplex is further analyzed by mass spectrometry to verify the exact composition of the duplex. Each lot is compared to the previous lot by mass spectrometry to ensure maximum lot-to-lot consistency.

Miz-1 (Zbtb17) is a poxvirus and zinc finger (POZ) transcription factor with an amino-terminal BTB/POZ domain and 13 carboxy-terminal zinc finger domains. Miz-1 plays a key role in cell cycle control through activation of the cyclin-dependent kinase inhibitors p15, INK4B, and p21 Waf1/Cip1 (1-4). The transcriptional activity of Miz-1 is repressed through direct interaction with Myc (1-4). In the presence of DNA damage, Myc is recruited to the p21 Waf1/Cip1 promoter by Miz-1 and blocks p53-mediated induction of p21 Waf1/Cip1, ultimately resulting in p53-mediated apoptosis rather than cell cycle arrest (4). Miz-1 also plays a role during lymphocyte development. In developing B and T cells, Miz-1 represses suppressor of cytokine signaling 1 (SOCS1) expression, which enables signaling through the IL-7 receptor and upregulation of the pro-survival protein Bcl-2 (5,6).

  1. Peukert, K. et al. (1997) EMBO J 16, 5672-86.
  2. Seoane, J. et al. (2001) Nat Cell Biol 3, 400-8.
  3. Staller, P. et al. (2001) Nat Cell Biol 3, 392-9.
  4. Seoane, J. et al. (2002) Nature 419, 729-34.
  5. Kosan, C. et al. (2010) Immunity 33, 917-28.
  6. Saba, I. et al. (2011) Blood 117, 3370-81.
Entrez-Gene Id
Swiss-Prot Acc.
For Research Use Only. Not For Use In Diagnostic Procedures.

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
SignalSilence is a registered trademark of Cell Signaling Technology, Inc.

Upstream / Downstream


Explore pathways related to this product.

Important Ordering Details

Custom Ordering Details: Product is assembled upon order. Please allow up to three business days for your product to be processed.
