Chart showing the proportions of underlying sequence motifs found in a PTMScan study using PKA substrate antibody and Orbitrap LC-MS analysis. Combined analysis of two experiments (#10619, #10620) on peptides from PC-12 cells gave 187 non-redundant sites containing PKA substrate and related motifs. The primary motifs are highlighted in white. The proportion containing phosphoserine was 82%, and the proportion with arginine residues at both the -3 and -2 positions (PKA substrate motif) was 64%. Although this antibody has a strong preference for the PKA substrate motif, it also recognizes peptides with just an arginine residue at the -3 position.Learn more about how we get our images

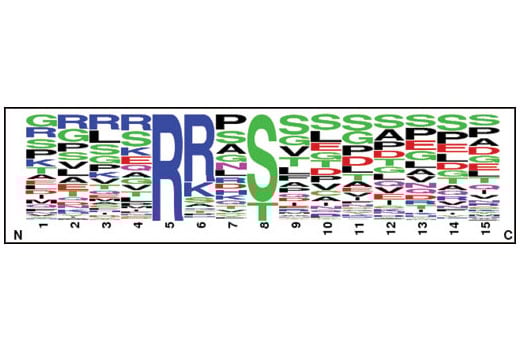

The Motif Logo shows the amino acid distributions around the sites recognized by the antibody.Learn more about how we get our images
Cells are lysed in a urea-containing buffer, cellular proteins are digested by proteases, and the resulting peptides are purified by reversed-phase, solid-phase extraction. Peptides are then subjected to immunoaffinity purification using a PTMScan® Motif antibody conjugated to protein A agarose beads. Unbound peptides are removed through washing, and the captured PTM-containing peptides are eluted with dilute acid. Reversed-phase purification is performed on microtips to desalt and separate peptides from antibody prior to concentrating the enriched peptides for LC-MS/MS analysis. CST recommends the use of PTMScan® IAP Buffer #9993 included in the kit. A detailed protocol and Limited Use License allowing the use of the patented PTMScan® method is included with the kit.
Antibody beads supplied in IAP buffer containing 50% glycerol. Store at -20°C. Do not aliquot the antibody.
PTMScan® Technology employs a proprietary methodology from Cell Signaling Technology (CST) for peptide enrichment by immunoprecipitation using a specific bead-conjugated antibody in conjunction with liquid chromatography (LC) tandem mass spectrometry (MS/MS) for quantitative profiling of post-translational modification (PTM) sites in cellular proteins. These include phosphorylation (PhosphoScan®), ubiquitination (UbiScan®), acetylation (AcetylScan®), and methylation (MethylScan®), among others. PTMScan® Technology enables researchers to isolate, identify, and quantitate large numbers of post-translationally modified cellular peptides with a high degree of specificity and sensitivity, providing a global overview of PTMs in cell and tissue samples without preconceived biases about where these modified sites occur (1). For more information on PTMScan® Proteomics Services, please visit www.cellsignal.com/common/content/content.jsp?id=ptmscan-services.
An important class of kinases, refered to as Arg-directed kinases or AGC-family kinases, includes cAMP-dependent protein kinase (PKA), cGMP-dependent protein kinase (PKG), protein kinase C, Akt, and RSK. These kinases share a substrate specificity characterized by Arg at position -3 relative to the phosphorylated Ser or Thr (2,3). Phospho-PKA substrate-specific antibodies from CST are powerful tools for investigating the regulation of phosphorylation by PKA and other Arg-directed kinases, as well as for high throughput kinase drug discovery.
In this assay, PTMScan® (RRXS*/T*) Motif Antibody bead conjugates are used to specifically enrich phospho- peptides containing the RRXS*/T* motif (S* = phospho- serine, T*= phospho-threonine).
